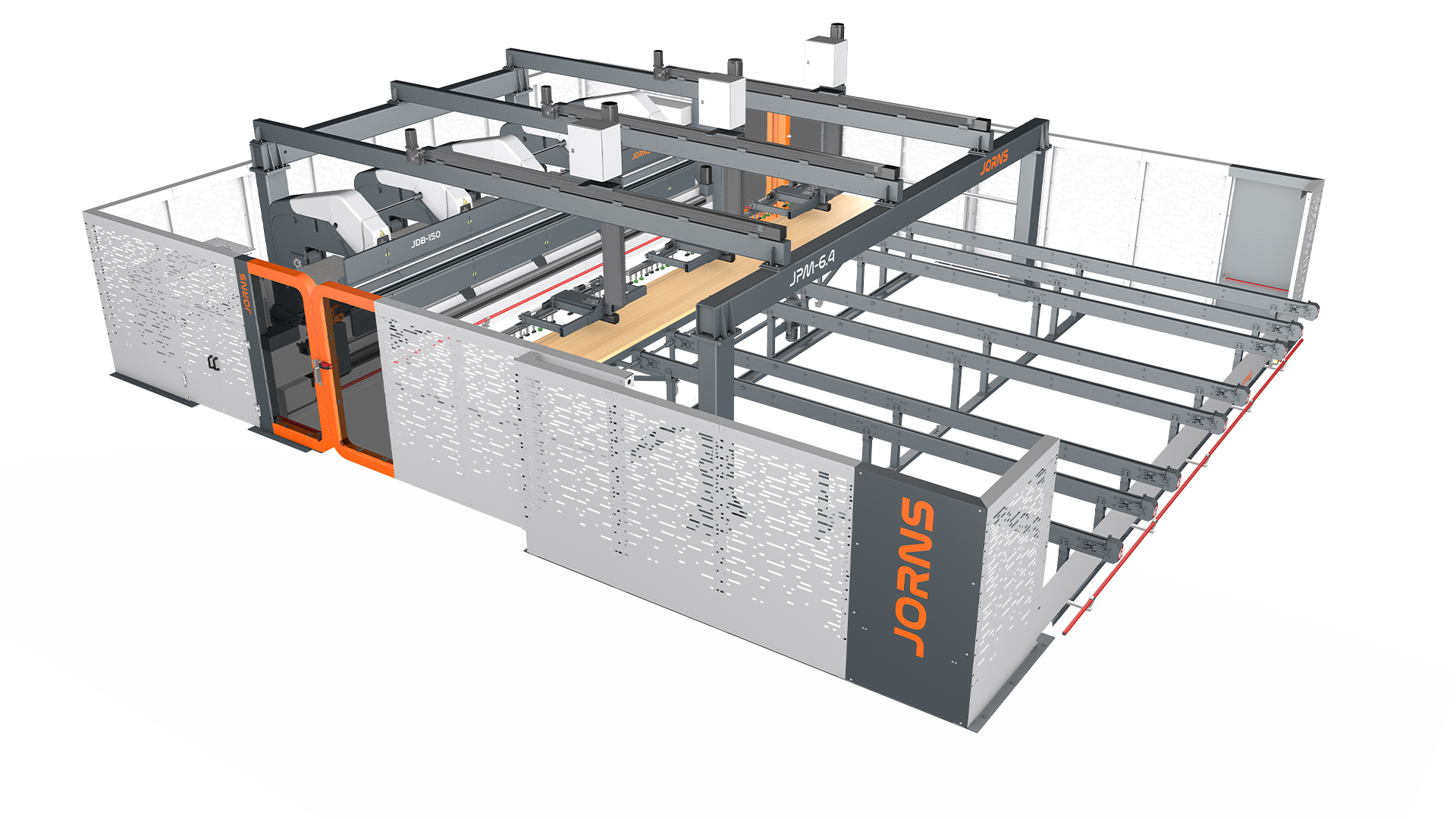

The Jorns JPM profile manipulator: fully automatic and flexible
The Jorns JPM profile manipulator is fully automatic and flexible in operation. In combination with the Jorns double bending machine, it can load, bend and unload several sheets of metal at the same time – completely automatically. Manual work is also no problem with the Jorns JPM profile manipulator. Once a task has to be carried out by hand, the system moves into park position. Human assistance re-mains indispensable.
Wide-ranging benefits with the Jorns JPM profile manipulator
Increased productivity
Production orders that are serial in nature, with large numbers and with recurring bending profiles can be processed faster and more efficiently.
Reduction in workload for the machine operator
Exhausting material handling – particularly on double bending machines – is eliminated, with loading, rollovers and unloading all taking place automatically.
Reduction in personnel costs
Manpower requirements are reduced, particularly for recurring bending profiles or bending orders that are serial in nature.
Added care in material handling
The automatic vacuum suction system keeps a tight hold on the material – at no time in the process can it fall onto the floor, from loading through to unloading via the infeed table. Thanks to constant monitoring of the material handling process, scratches and deformation on the finished bending profile are prevented.
Space-saving automation solution
The double bending machine is loaded and unloaded from the front only, allowing for optimal utilisation of space at the operating site.
Efficient automation solution
The complex mechanical refitting of the system for special tasks is eliminated. Sheet strips or bent profiles with working surfaces from 50 mm up to a panel width of 1250 mm can be picked up and then set down again safely in a different location.
Reliable workflows
The output conveyor offers the machine operator the necessary buffer zone. The Jorns double bending machine and Jorns JPM profile manipulator continue to operate as long as the output conveyor has space or there is raw material available.
Outstanding flexibility
In addition to the fully automatic mode in combination with the Jorns JPM profile manipulator, the Jorns double bending machine also works as normal as a standalone unit.
This flexibility is particularly useful when the machine operator has to quick

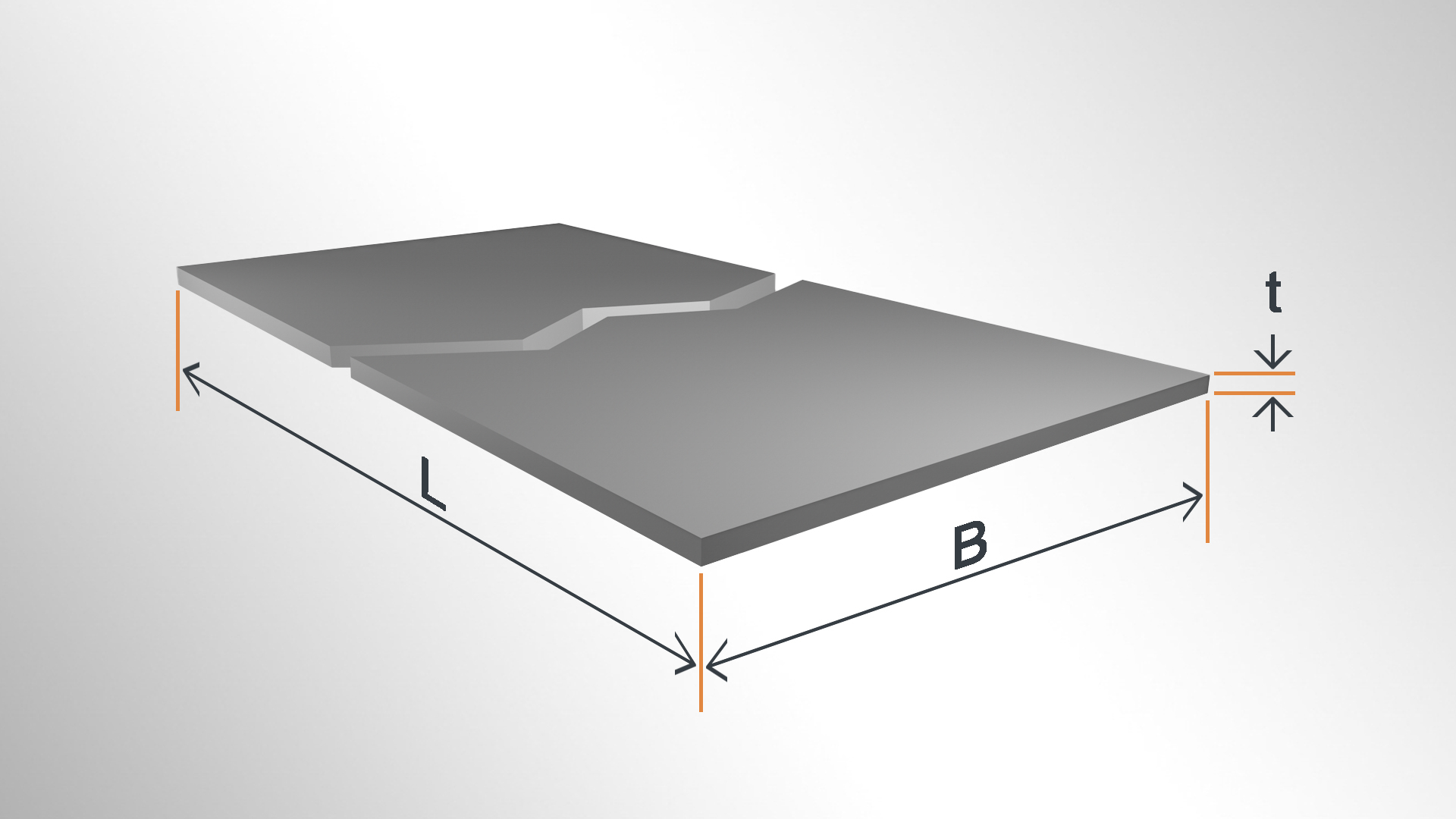

Material capacity
- Material thickness up to 3 mm steel
- Sheet width up to 1250 mm
- Profile length up to 12 m
Requirements: bending machine and material
The Jorns JPM profile manipulator can be retrofitted on any existing Jorns JDB double bending machine. The following requirements must be met in order to guarantee a smooth process:
Double bending machine
- Automatic infeed tables
Modular system design
The Jorns JPM profile manipulator has a modular design. An automatic or manual outfeed system can be added depending on your specific requirements. The bending profile is transferred to the outfeed system individually or in a stack, whereby the Jorns d
The following axes give the Jorns JPM profile manipulator its outstanding flexibility:

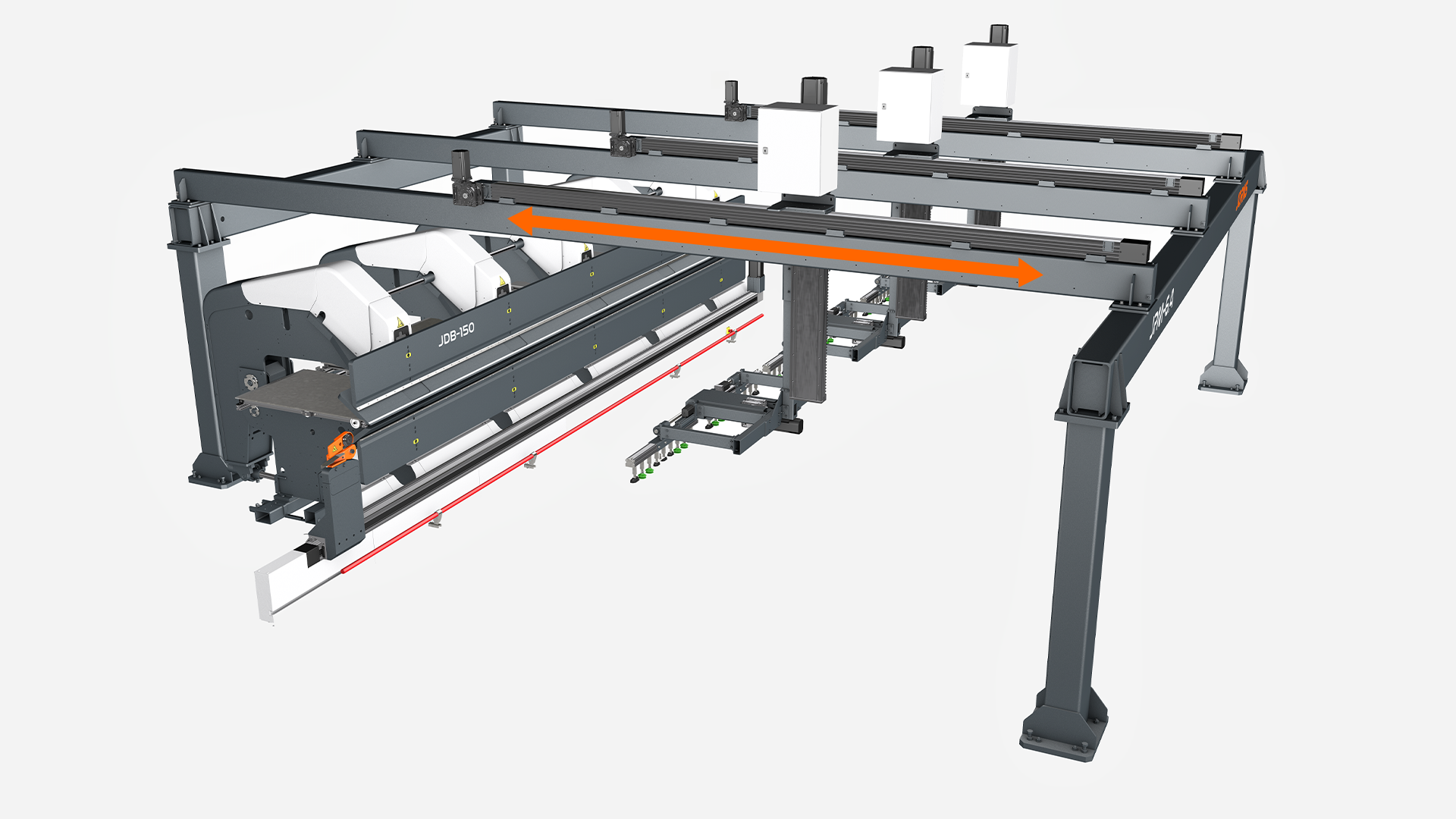

X-axis
Consists of several linear modules and moves horizontally at speeds of up to 1000 mm/s

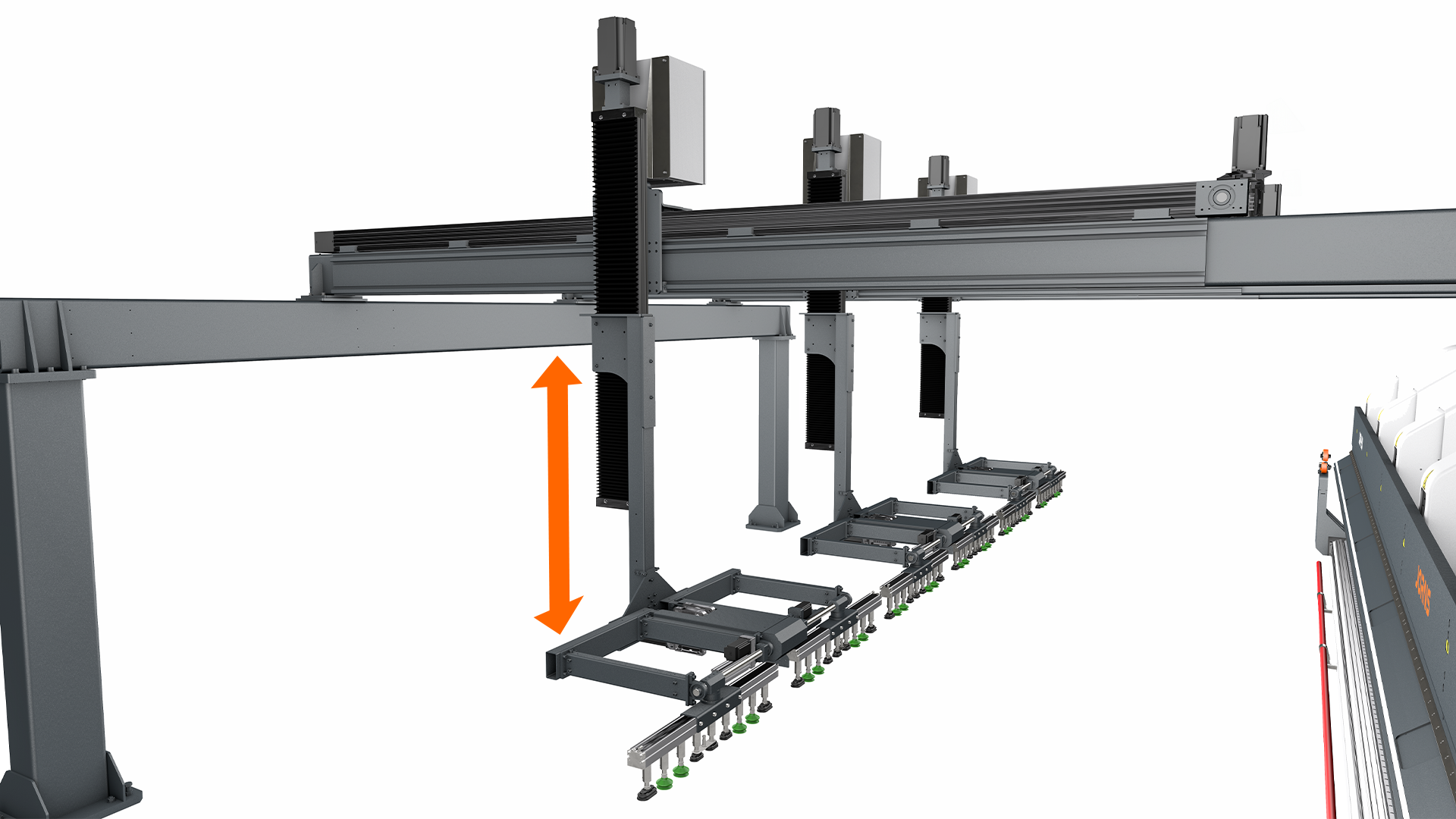

Z-axis
Moves vertically with a travel distance of 1000 mm at speeds of up to 800 mm/s
B-axis
Has a swivel area of up to 180° at speeds of up to 90°/s

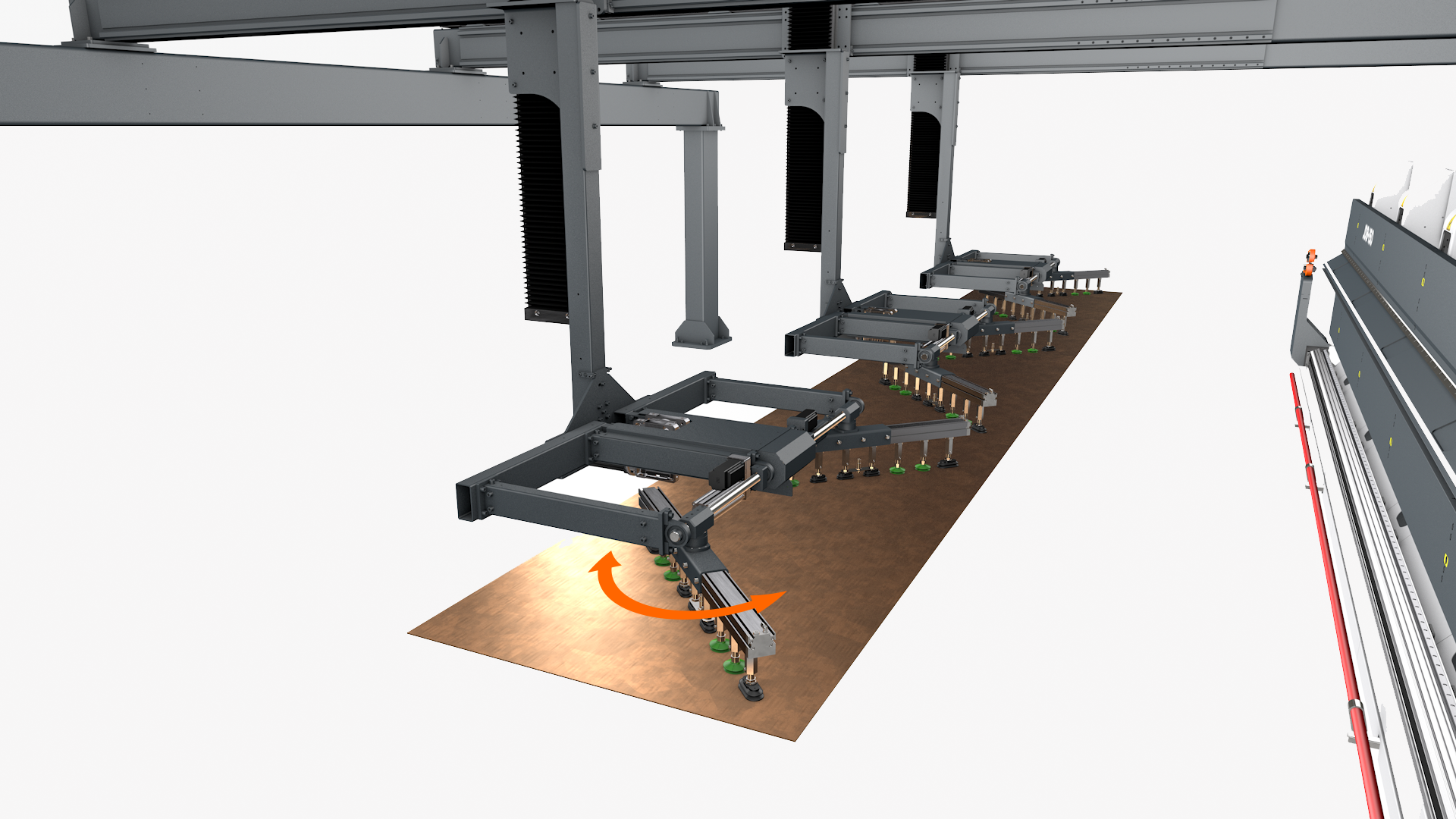

C-axis
Swings the vacuum suction beams up to 90° at speeds of up to 45°/s
Simple teach-in programming

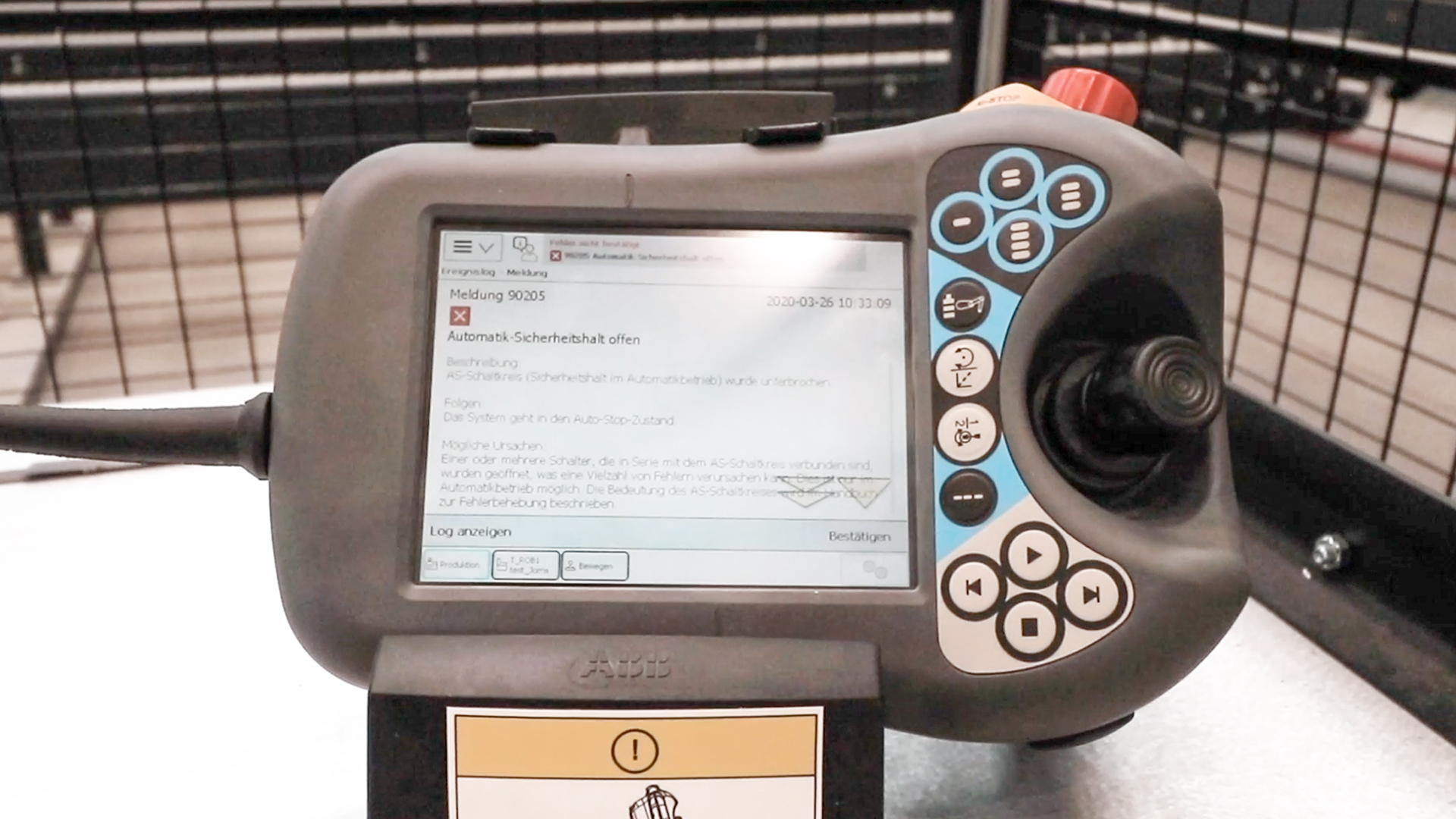

A manual control panel is used to manage and program the desired workflows for material handling on the Jorns JPM profile manipulator. This can be carried out easily thanks to teach-in programming. Here, the Jorns profile manipulator is brought

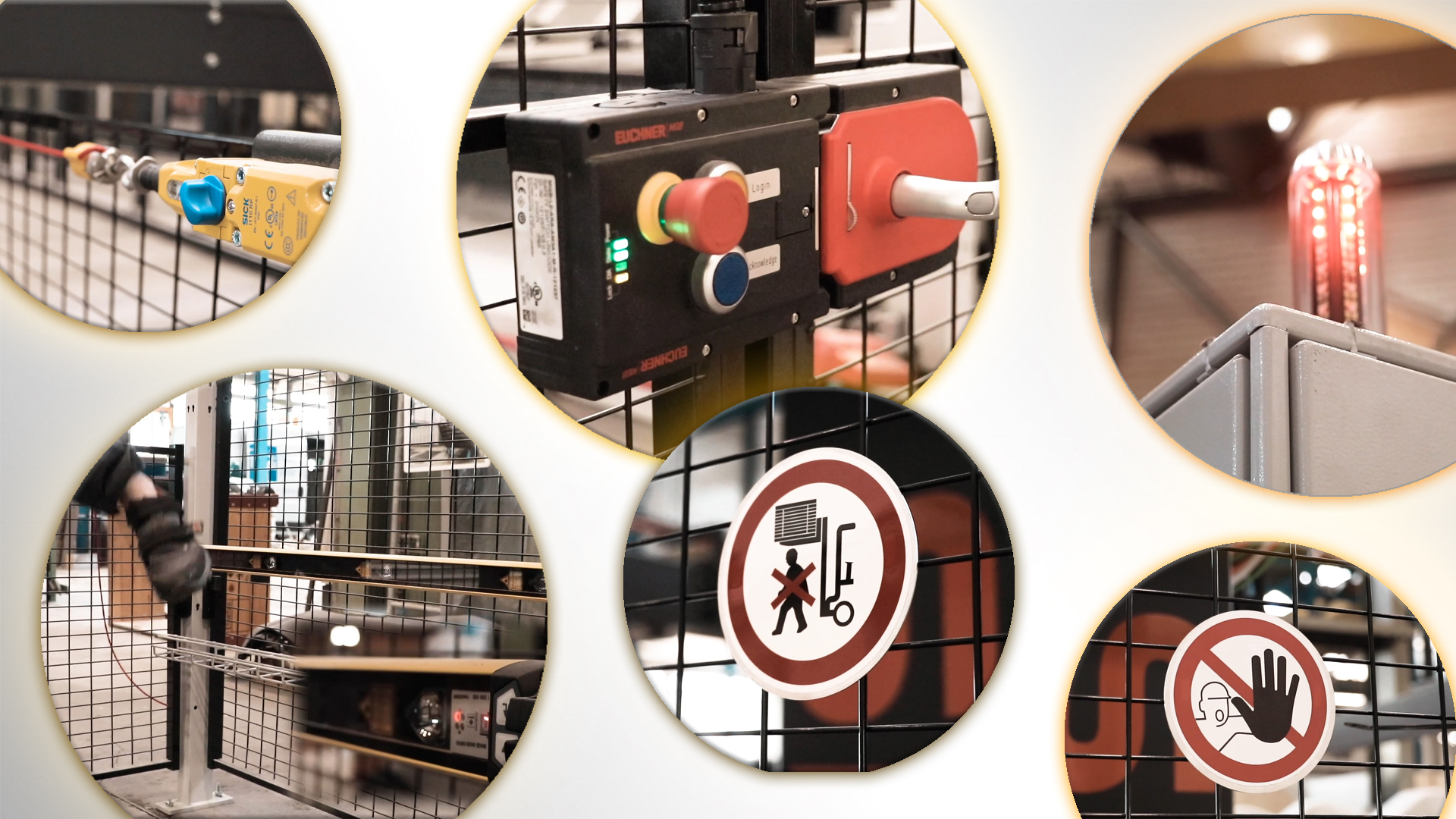

System safety
As the Jorns JPM profile manipulator and Jorns JDB double bending machine work together as a fully automated production unit, the entire system is enclosed by a protective casing. A coordinated safety system consisting of light barriers, monitored slid
Limitations – what the Jorns profile manipulator cannot do (yet)
- Material currently being bent cannot be guided.
- Certain profiles can only be bent in semi-automatic mode and must be finished by hand.
- Perforated or expanded sheets cannot be drawn in.
